Why the 1940 Gibson L7 Stands as a Defining Moment in Guitar History

The 1940 Gibson L7 represents a pivotal moment in American guitar manufacturing—the final year before World War II would drastically alter production methods and available materials. This was Gibson's most popular professional-sized archtop, offering the same specifications as the premium L-5 but without the elaborate appointments. Most significantly, 1940 marked the debut of two revolutionary design elements that would become Gibson hallmarks: the pearl crown headstock inlay and the parallelogram fingerboard inlays.

What makes the 1940 L7 historically significant:

  • First year to feature the iconic crown headstock inlay and parallelogram position markers

  • Peak quality materials before wartime restrictions limited availability

  • Represents the pinnacle of Gibson's pre-war craftsmanship and design philosophy

  • Built during the era when big band music demanded maximum acoustic projection

  • The last full year of unrestricted production before WWII manufacturing challenges

Historical Context: Gibson in 1940 and the Pre-War Golden Era

In 1940, Gibson was operating at full capacity from their Kalamazoo, Michigan facility, utilizing premium materials that would soon become scarce due to wartime restrictions. The company had spent the previous five years perfecting the "Advanced" series of guitars, which increased body sizes to 17 inches to meet the volume demands of the big band era.

The L7 was positioned as Gibson's "working musician's guitar"—identical in construction to the flagship L-5 but with simpler appointments. This guitar featured spectacular arched tiger flame maple sides and back with solid handcarved bookmatched spruce top, and was the first Gibson instrument along with the ES-300 to receive the pearl crown inlay on the headstock and parallelogram inlays on the fretboard.

During this period, Gibson employed master craftsmen who hand-selected premium woods and applied meticulous construction techniques. The 1930s and 40s were a true golden era for Gibson's archtop line; a period that produced some of the most sought after and famed instruments. Choice maple and spruce was abundant.

Notable characteristics of 1940 production:

  • Hand-carved solid spruce tops with tight, even grain

  • Premium flamed maple backs and sides

  • Brazilian rosewood fingerboards and bridges (standard at the time)

  • Nitrocellulose lacquer finishes applied in thin, resonant coats

  • Meticulous hand-fitting of all components


Detailed Identification Guide for the 1940 Gibson L7

Serial Numbers and Dating

The 1940 Gibson L7 will have a white paper label inside the sound hole with a 5-digit serial number, typically in the range of 95,000-96,000. However, many 1940 instruments may also have only a Factory Order Number (FON) instead of or in addition to a serial number.

FON Dating for 1940: The FON system for 1940 used letter prefixes where the first letter indicates the year. For 1940, look for FONs beginning with "D" followed by a 4-digit batch number.

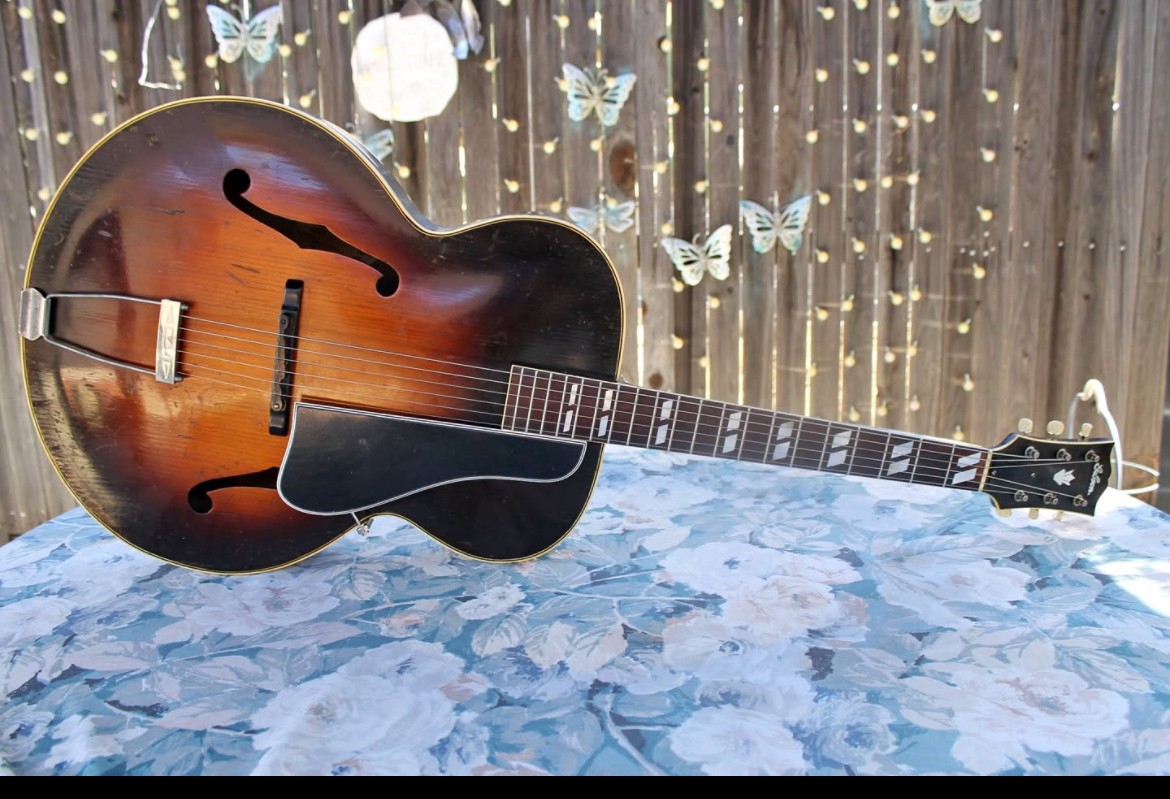

Visual Identification Features

Headstock:

  • Pearl crown inlay—1940 was the first year Gibson used this now-iconic design

  • "Gibson" script logo in pearl

  • Bound headstock edges

Fingerboard:

  • Parallelogram mother-of-pearl inlays—also debuting in 1940

  • Brazilian rosewood fingerboard (standard until the 1960s)

  • Bound fingerboard edges

Body Construction:

  • 17-inch lower bout width

  • Carved solid spruce top with f-holes

  • Carved maple back and sides

  • Triple-bound body edges

Hardware Specifications:

  • Original hardware includes rare art-deco "concentric diamond" trapeze tailpiece, bound tortoise pickguard, compensated rosewood adjustable bridge, and open back Grover tuners

  • Nickel-plated hardware throughout

  • Kluson Deluxe tuners with open-back design

Finish Options and Identification

Sunburst Finish (Most Common):

  • Deep amber to dark brown burst pattern

  • Translucent finish showcasing wood grain

  • Nitrocellulose lacquer with natural aging characteristics

Natural/Blonde Finish (Rare): The natural finish option debuted in 1940, with blonde examples being much scarcer than sunburst versions. Gibson craftsmen saved the most highly figured maple for the blonde guitars.

Physical Specifications

Body Dimensions:

  • Lower bout: 17 inches

  • Upper bout: 12.5 inches

  • Waist: 10.25 inches

  • Body depth: 3.5 inches

  • Scale length: 25.5 inches

Neck Specifications:

  • Nut width: 1 11/16 inches

  • Neck profile: Full "C" shape, comfortable for both rhythm and lead playing

  • The neck has smooth low action over a classic C profile with Brazilian rosewood fingerboard

Weight and Balance:

  • Typical weight: 6-7 pounds

  • Notably lightweight and well balanced, on the lap or the strap

Hardware Details:

  • Bridge: Adjustable rosewood bridge with compensated saddle

  • Tailpiece: Art-deco "concentric diamond" trapeze design

  • Tuners: Kluson Deluxe open-back tuners

  • Pickguard: Bound tortoiseshell celluloid

Tonal Characteristics of the 1940 L7

The 1940 Gibson L7 was specifically designed to compete with horn sections in big band settings, resulting in exceptional acoustic projection and clarity.

Sound Profile:

  • Thrilling clarity and projection, with massive volume and a rich, buttery tonal range

  • Very powerful projecting tone with strong midrange and bass that is particularly well suited for rhythm and chord melody playing

  • Excellent note separation and definition

  • Balanced frequency response across all registers

Construction Elements Affecting Tone:

  • Carved Top: The hand-carved solid spruce top provides superior resonance compared to laminated alternatives

  • X-Bracing: Gibson introduced the X-brace support system for the first time in their archtop guitars, which provides warm woody tone, with greater sustain and bass response

  • Maple Back and Sides: Contributes focused midrange and excellent projection

  • Brazilian Rosewood: Adds warmth and complexity to the overall voice

Playing Characteristics: This L7 is unbelievably loud and projecting, perfect for Freddie Green big band rhythm – easily cutting through a 12-piece brass band unamplified.

Notable Musicians and the L7 Legacy

The Gibson L7 became the instrument of choice for working rhythm guitarists during the swing era, particularly those who needed to cut through large ensembles without amplification.

Big Band Applications: The L7 was partly designed to meet the increasing volume demands of players in the Big Band era of the 1930s, with its driving jazz rhythms whose big-chorded pulse soars over the big band to reach the audience.

Freddie Green Connection: While Freddie Green himself primarily played Epiphone Emperors and later Stromberg guitars, period-correct L7s strung with heavy strings and beefy action were able to achieve similar results without amplification in 30's/40's-style big bands.

Playing Style Applications:

  • Big band rhythm guitar

  • Jazz chord melody

  • Acoustic swing and country

  • Recording applications requiring maximum acoustic projection

Common Issues and Modifications to Watch For

When evaluating a 1940 Gibson L7, be aware of these common condition issues:

Typical Problems:

  1. Pickguard Deterioration: The original pickguard often crumbled over time, as nitrate pickguards were known to disintegrate with age

  2. Neck Resets: Common on guitars of this age due to string tension over decades

  3. Bridge Issues: Original adjustable bridges may require restoration

  4. Tuner Replacement: Original Kluson tuners often replaced with modern alternatives

Modifications That Affect Value:

  • Electronics Added: Some guitars have holes cut for pickup installations or volume controls

  • Refinishing: Any refinishing dramatically reduces value

  • Hardware Changes: Non-original tuners, tailpieces, or bridges impact authenticity

  • Structural Repairs: Crack repairs, though necessary, affect value

Authentication Concerns:

  • Verify original FON and serial number placement

  • Check for period-correct hardware and appointments

  • Examine finish authenticity and aging patterns

  • Confirm proper headstock logo and inlay styles

Why Collectors and Players Value the 1940 L7

Historical Significance:

  • Represents the first year of Gibson's most iconic design elements

  • Built during the peak of American guitar craftsmanship

  • Last full year before wartime production restrictions

Playing Appeal:

  • As originally intended for the model – this can still be a working musician's guitar

  • Exceptional acoustic projection for unamplified performance

  • Comfortable neck profile suitable for all playing styles

  • Authentic vintage tone that has mellowed with age

Investment Potential:

  • Pre-war American guitars continue to appreciate

  • Limited production numbers increase rarity

  • Growing recognition of the L7's importance in guitar history

  • Strong demand from both players and collectors

Selling Your 1940 Gibson L7 to Edgewater Guitars

If you own a 1940 Gibson L7, Edgewater Guitars offers several advantages over other selling options:

Our Value Proposition:

  • Premium Pricing: We typically pay 30-40% more than local guitar shops

  • Expert Authentication: Our team specializes in pre-war Gibson identification

  • Immediate Payment: Cash offers with no waiting or consignment fees

  • Professional Evaluation: We understand the specific features that affect 1940 L7 values

Why Choose Edgewater Over Alternatives:

Compared to Local Guitar Shops:

  • Higher offers due to our specialized knowledge

  • Better understanding of pre-war Gibson market values

  • No retail markup constraints affecting our purchase prices

Compared to Online Sales:

  • No fees, shipping risks, or return hassles

  • Immediate transaction completion

  • Professional authentication included

Compared to Auction Houses:

  • No waiting periods or uncertain outcomes

  • No seller's fees or commissions

  • Personal, white-glove service

Our Evaluation Process:

  1. Initial Assessment: Photo evaluation or phone consultation

  2. Authentication: Detailed examination of all identifying features

  3. Market Analysis: Current pricing based on condition and rarity

  4. Immediate Offer: Cash offer typically within 24 hours

Service Area: We purchase vintage guitars throughout Ohio, Michigan, Pennsylvania, Indiana, and West Virginia, with travel arrangements for high-value instruments.

Related Resources for 1940 Gibson L7 Owners

Authentication Tools:

Related Model Information:

Selling Resources:

Conclusion: The Enduring Appeal of the 1940 Gibson L7

The 1940 Gibson L7 stands as a testament to American guitar craftsmanship at its peak. As the first year to feature Gibson's iconic design elements and the last year of unrestricted pre-war production, these instruments represent both historical significance and exceptional playing quality.

Whether you're a collector seeking a piece of guitar history or a player looking for authentic big band tone, the 1940 L7 delivers on all fronts. Its combination of professional-grade construction, legendary Gibson tone, and historical importance continues to make it one of the most sought-after vintage archtops available.
