Introduction

Properly setting the height of your humbucker pickups is one of the most impactful adjustments you can make to your guitar's tone. This often-overlooked setup step can dramatically improve your sound, enhance playability, and help you achieve the specific tonal characteristics you're looking for—all without spending a dime on new gear.

In this comprehensive guide, we'll walk through everything you need to know about setting humbucker pickup height: why it matters, the tools you'll need, recommended measurements, and a step-by-step process to dial in your perfect tone. We'll also explore the physics behind pickup operation, advanced adjustment techniques, and specific recommendations for different pickup types and playing situations.

Why Pickup Height Matters

The distance between your pickups and strings fundamentally affects:

• Output and gain level: Closer pickups produce stronger signals and more output

• Frequency response: Proximity changes the bass/treble balance

• Dynamic range: Height affects how the pickup responds to your playing touch

• Sustain: Pickups too close can create magnetic pull that dampens string vibration

• String-to-string balance: Proper adjustment ensures even volume across all strings

For humbucker-equipped guitars (like Les Pauls, SGs, and many other models), finding the ideal height is particularly important because these pickups already have a strong magnetic field. Getting the height wrong can result in issues ranging from muddy tone to unwanted string pull that affects intonation and playability.

The Physics Behind Pickup Height

To understand why height matters so much, it helps to know the basic physics involved:

Humbuckers work on the principle of electromagnetic induction. The magnet in the pickup creates a magnetic field that extends vertically from the pickup. Your guitar strings (which are made of ferromagnetic material) disturb this field when they vibrate. This disturbance induces an electrical current in the pickup coils, which becomes your guitar signal.

The strength of this interaction follows the inverse square law, meaning:

• Moving the pickup twice as close to the strings quadruples the signal strength

• Moving it half as far away reduces signal to one-quarter strength

This explains why small adjustments in pickup height can dramatically change your tone. The magnetic field also exerts a pull on your strings, which can:

• Dampen string vibration (reducing sustain)

• Affect pitch accuracy (especially noticeable during bends)

• Create unwanted artifacts like "wolf tones" or warbled notes

Different magnet types (Alnico 2, 3, 5, 8, ceramic) have different magnetic field strengths, which is why some humbuckers sound better set further from the strings than others.

Tools You'll Need

Fortunately, setting pickup height requires minimal tools:

• Small ruler or precision measuring tool (preferably in millimeters)

• Phillips-head screwdriver

• Tuner (to ensure strings are at proper pitch)

• Your amplifier (to hear changes as you make adjustments)

• Optional: masking tape (to mark original positions)

Measurement Options and Alternatives

If you don't have a precision ruler, here are some alternative measurement methods:

• Credit card method: A standard credit card is approximately 0.76mm thick. Stacking or folding can create reference thicknesses (2 cards = 1.52mm, etc.)

• U.S. coins: A quarter is about 1.75mm thick, a nickel is 1.95mm, and a penny is 1.52mm

• Feeler gauges: Automotive feeler gauges provide extremely precise measurements

• Digital calipers: For those seeking laboratory-grade precision

For visual learners, here's a reference chart for common pickup height measurements:

Remember that these are starting points—your ear should make the final determination.

Understanding Humbucker Adjustment

Before making changes, it's important to understand how humbucker height is adjusted:

Humbuckers are typically mounted to the guitar body or pickguard using springs and screws on either side of the pickup. These screws (sometimes called height adjustment screws) allow you to raise or lower each side independently:

• Clockwise turns lower the pickup (increase distance from strings)

• Counter-clockwise turns raise the pickup (decrease distance from strings)

Each side can be adjusted separately, which allows you to set different heights for the bass strings and treble strings. This is important because the wound bass strings produce a stronger magnetic interaction than the plain treble strings.

Recommended Starting Measurements

While personal preference should ultimately guide your final settings, here are industry-standard measurements for humbucker pickups:

Bridge Pickup

• Bass side (low E string): 2.0mm to 2.4mm between the top of the pole piece and bottom of the string when fretting the last fret

• Treble side (high E string): 1.6mm to 2.0mm between the top of the pole piece and bottom of the string when fretting the last fret

Neck Pickup

• Bass side (low E string): 2.4mm to 2.8mm between the top of the pole piece and bottom of the string when fretting the last fret

• Treble side (high E string): 2.0mm to 2.4mm between the top of the pole piece and bottom of the string when fretting the last fret

Note that the neck pickup is typically set slightly lower (further from the strings) than the bridge pickup. This compensates for the fact that strings vibrate with greater amplitude near the neck position.

Manufacturer-Specific Recommendations

Different guitar and pickup manufacturers provide their own specifications, which can vary based on pickup design:

Gibson Factory Specifications

• Modern Humbuckers (490R/498T, Burstbucker, etc.)

  • Bridge: 1/16" (1.6mm) bass side, 5/64" (2.0mm) treble side

  • Neck: 5/64" (2.0mm) bass side, 3/32" (2.4mm) treble side

PRS Factory Specifications

• Standard Humbuckers

  • Bass side (low E): 5/64" (2.0mm)

  • Treble side (high E): 4/64" (1.6mm)

• 58/15 Pickups

  • Slightly lower than standard (add 0.4mm to measurements above)

Seymour Duncan Recommendations

• High-Output Humbuckers (JB, Distortion, etc.)

  • Set slightly lower than vintage-output pickups to prevent oversaturation

• Vintage-Output Humbuckers (Seth Lover, '59, etc.)

  • Can be set closer to strings without experiencing magnetic pull issues

Active Pickup Considerations (EMG, Fishman, etc.)

• General starting point: 3/32" (2.4mm) for both pickups, both sides

• Active pickups can typically be set further from strings while maintaining output

These are starting points—your specific instrument and pickups may benefit from fine-tuning beyond these general guidelines.

Step-by-Step Adjustment Process

Follow these steps to set your humbucker pickup height:

1. Prepare Your Guitar

• Tune your guitar to pitch (pickup height should always be set at playing tension)

• Clean the pickups and surrounding area if necessary

• If desired, use masking tape to mark the original position of your pickups (in case you want to return to your starting point)

2. Establish a Baseline

• Plug into your amplifier with your typical tone settings

• Play each string individually and note any inconsistencies in volume or tone

• Play chords and riffs you commonly use to get a sense of your current sound

3. Measure Current Height

• Press down on your low E string at the last fret (this gives you the true playing height)

• Using your ruler, measure the distance from the top of the pickup pole piece to the bottom of the pressed-down string

• Repeat for the high E string

• Record these measurements for reference

4. Adjust the Bridge Pickup First

• Start by adjusting one side at a time

• Turn the adjustment screws (counterclockwise to raise, clockwise to lower) to achieve the recommended measurements

• Keep both screws at roughly the same height as you begin adjustments

5. Test and Refine Bridge Pickup

• Play through your amplifier after each adjustment

• Listen for improvements in tone clarity, output level, and string-to-string balance

• Make additional small adjustments until you're satisfied

• Fine-tune the individual sides (bass vs. treble) to balance the output

6. Repeat Process for Neck Pickup

• Follow the same procedure for the neck pickup

• Remember that the neck pickup typically sits slightly further from the strings than the bridge pickup

• Pay attention to the balance between pickups when switching between them

7. Balance Both Pickups

• Switch between pickup positions (bridge, neck, and both together if available)

• Make small adjustments to ensure consistent volume when switching positions

• The middle position (both pickups) should sound balanced without one pickup dominating

Fine-Tuning for Your Playing Style

The standard measurements are just starting points. Consider these adjustments based on your playing style:

For Heavy/High-Gain Players

• Try slightly lower pickup height (further from strings) to prevent mud and allow for cleaner distortion

• Balance is particularly important for articulation in high-gain settings

• For extreme metal or downtuned guitars, consider adding an extra 0.5mm distance to avoid bass frequencies overwhelming the signal

• With active pickups, you can set them even further from strings while maintaining output

For Clean/Jazz Players

• Higher pickup position (closer to strings) can provide more warmth and output

• Be careful not to go too high, as excessive magnetic pull can affect sustain

• Consider raising the neck pickup slightly more than standard for warmer jazz tones

• For hollow and semi-hollow body guitars, consider slightly lower settings to prevent feedback

For Dynamic Players

• A middle-ground height often provides the best dynamic response

• Test with various picking strengths to ensure the pickup captures your playing nuances

• Try raising just the treble side slightly for better acoustic-like string balance

• For fingerstyle players, a slightly higher setting can capture the subtleties of finger attack

For Extended-Range and Baritone Guitars

• Lower-tuned strings benefit from slightly greater distance (add 0.2-0.3mm)

• For 7/8/9-string guitars, consider a more angled pickup setup to accommodate the wider string range

• The lowest strings may need more distance to prevent muddiness

For Recording vs. Live Performance

• Recording: Often benefits from slightly lower pickup height for cleaner signal and better dynamics

• Live Performance: May benefit from closer pickup height for stronger output and better punch through the mix

• Consider having two setups: One optimized for each context if you frequently do both

Common Issues and Solutions

Comprehensive Troubleshooting Guide

Advanced Pole Piece Adjustment

For humbuckers with adjustable pole pieces:

1. Start with pickup height: Get the overall height correct first

2. Check string-to-string balance: Play each string with consistent attack

3. Identify problem strings: Note any that sound too loud or too quiet

4. Make small adjustments: Turn pole piece screws in small increments:

   • Clockwise to lower (quieter)

   • Counter-clockwise to raise (louder)

5. Match string radius: Adjust pole pieces to follow fretboard radius

6. Compensate for string gauge: Heavier strings may need pole pieces set slightly lower

For humbuckers with fixed pole pieces:

• Overall pickup angle becomes more critical

• Consider shims under mounting rings to achieve ideal angle

• Experiment with pickup height to find the sweet spot for string balance

Advanced Considerations

Humbucker Type-Specific Recommendations

Humbucker Cover Considerations

• Covered pickups have greater distance between coils and strings due to the metal cover

• For covered pickups, you may need to set them slightly closer than uncovered versions

• Nickel-silver covers have minimal impact on tone but create physical distance

• Brass covers have more tonal impact (slight high-end reduction) than nickel-silver

String Gauge and Material Impact

• Heavier gauge strings (11+ for electric) generate stronger signal and may need more distance

• Pure nickel strings have less magnetic response than nickel-plated steel

• Stainless steel strings have stronger interaction with magnets and may need greater distance

• Flat-wound strings typically generate less output and may benefit from closer pickup height

Specialized Playing Techniques

• Tapping techniques often benefit from slightly lower pickup height to prevent magnetic interference

• Artificial harmonics generally work better with bridge pickup slightly closer to strings

• Sweep picking benefits from balanced pickup height for consistent string-to-string response

Floating Bridge Considerations

For guitars with Floyd Rose or similar tremolo systems:

• Set pickup height with the bridge in its neutral position

• Check height at both extremes of the tremolo range

• Leave additional clearance to account for increased string vibration during dive bombs

• Consider slightly lower settings to prevent interference during extreme techniques

Maintenance Tips

Once you've found your ideal pickup height:

• Mark the screw positions with a small dot of nail polish or similar marker

• Record the measurements for future reference

• Check and adjust pickup height whenever you change string gauges or make other setup changes

• Clean the area around adjustment screws periodically to prevent buildup that might affect height stability

Integration with Complete Guitar Setup

Pickup height adjustment should be considered as part of a holistic guitar setup. Here's where it fits in the complete setup process:

1. Neck relief adjustment (truss rod)

2. Nut height/slot depth

3. Bridge saddle height/action

4. Intonation

5. Pickup height ← This is where our focus has been

6. Final setup checks and fine-tuning

Changes to earlier setup elements often necessitate pickup height adjustments. For example:

• Lowering your action may require lowering pickups to maintain the same string-to-pickup distance

• Changing string gauge almost always requires pickup height adjustment

• Seasonal humidity changes that affect neck relief may indirectly affect optimal pickup height

Digital Tools for Precise Measurement

For those seeking laboratory-grade precision:

• Digital calipers can measure to 0.01mm accuracy

• Specialized pickup height gauges are available from luthier supply companies

• Spectrum analyzer apps can help visualize how height changes affect frequency response

Famous Guitarist Humbucker Settings

While personal preference should always guide your adjustments, here are some notable humbucker height setups from renowned guitarists:

• Jimmy Page (Led Zeppelin): Relatively close pickup height, especially on the bridge pickup, contributing to his aggressive tone

• Slash (Guns N' Roses): Moderate bridge pickup height with slightly lower neck pickup for his signature lead sound

• James Hetfield (Metallica): Lower pickup height to accommodate heavy picking and maintain clarity with high gain

• Joe Bonamassa: Slightly higher neck pickup for warm blues tones, with careful height calibration for his vintage PAF pickups

Conclusion

Setting the proper height for your humbucker pickups is a simple adjustment that yields significant tonal benefits. While the measurements provided here offer a solid starting point, your ears should be the final judge. Take time to experiment, make small adjustments, and find the sweet spot that complements your playing style and gear.

Remember that pickup height is just one element of your overall guitar setup. For the best results, ensure your guitar is properly intonated, with appropriate string action and neck relief. When all these elements work together, you'll achieve the best possible tone and playability from your instrument.

Frequently Asked Questions

Q: How often should I check/adjust pickup height? A: Check pickup height whenever you change string gauge, adjust your setup, or notice tonal changes. Seasonal changes may also affect optimal height.

Q: Can pickup height affect tuning stability? A: Yes. Pickups set too close can exert enough magnetic pull to affect pitch, especially on lighter gauge strings.

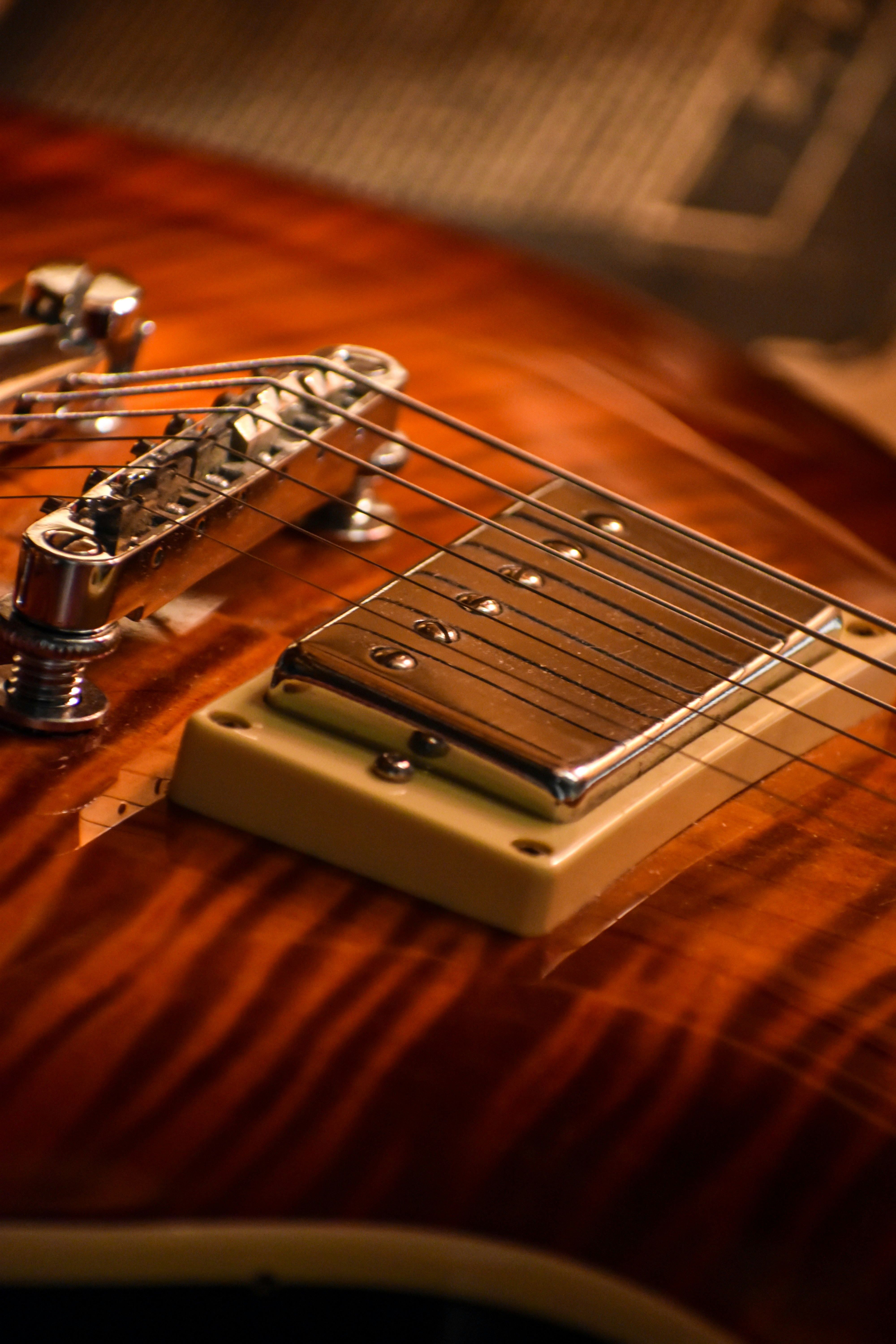

Q: Do covered humbuckers need different height settings than uncovered ones? A: Generally yes. The metal cover creates additional distance between the magnetic core and the strings, so covered pickups may need to be set slightly closer.

Q: Should I adjust pickup height while standing or sitting? A: Set pickup height while holding the guitar in your normal playing position, as the guitar's orientation can slightly affect how the strings sit relative to the pickups.

Q: How do I know if my pickups are too close to the strings? A: Signs include warbling pitch, reduced sustain, and a "magnetic pull" feel when playing. If you experience these issues, lower your pickups slightly.

What's your experience with adjusting humbucker height? Have you found particular settings that work well for your style? Share your thoughts in the comments below!
